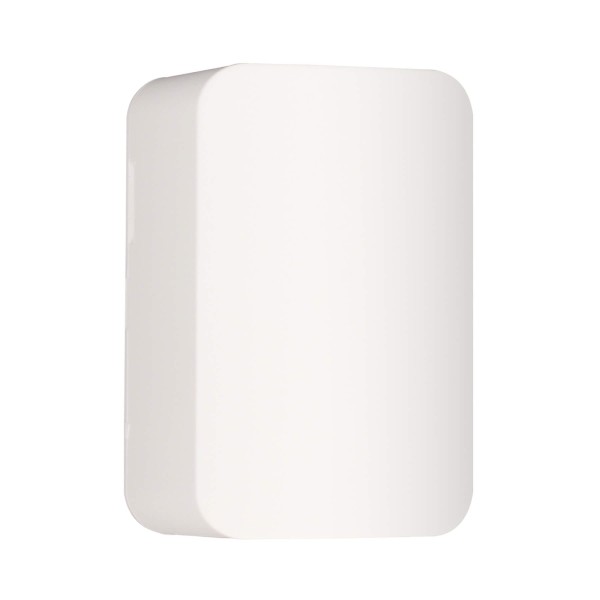

2GIG 345S Wireless Tilt Sensor - 2GIG-TILT100-345

Details

2GIG 345S Wireless Tilt Sensor - 2GIG-TILT100-345

The 2GIG 345S Wireless Tilt Sensor offers specialized monitoring by detecting when an object tilts beyond 45 degrees. Ideal for garage doors, hatches, or other hinged access points, it transmits alerts when tilted and restores when repositioned. The device includes tamper protection, low-battery supervision, and operates at 345 MHz for seamless integration with 2GIG panels. It comes with both double-sided tape and screws, allowing flexibility in mounting. With a projected battery life of up to ten years, this compact sensor delivers long-lasting and reliable monitoring for unique security needs.

Features

• Monitors tilt status of assets like garage doors, mailboxes, pet doors, or storm cellar doors
• Transmits alert when tilted beyond 45 degrees; sends restore signal when returned below 45 degrees
• Case tamper switch with battery supervision for low-battery reporting
• Operates in non-encrypted mode by default; encryption can be enabled via internal switch
• Includes double-sided tape and mounting screws for easy installation
• Battery life up to 10 years
• Compatible with 2GIG security panels (part of the 2GIG 345S ecosystem)

Specifications

• Transmitter Frequency: 345 MHz
• Compatibility: 2GIG panels
• Code Outputs: Alarm; Alarm Restore; Supervisory; Tamper; Tamper Restore; Low Battery
• Supervisory Interval: 70 minutes
• External Input: Accepts normally closed (NC) or normally open (NO) dry contact devices
• Housing Material: ABS plastic
• Operating Temperature: 2 to 120 degrees F (- 16 to 49 degrees C)
• Relative Humidity: 15% to 85%, non-condensing
• Battery (installed): One 3V CR2450 lithium
• Projected Battery Life: Up to 10 years
• Certifications: ETL, FCC, Industry Canada
