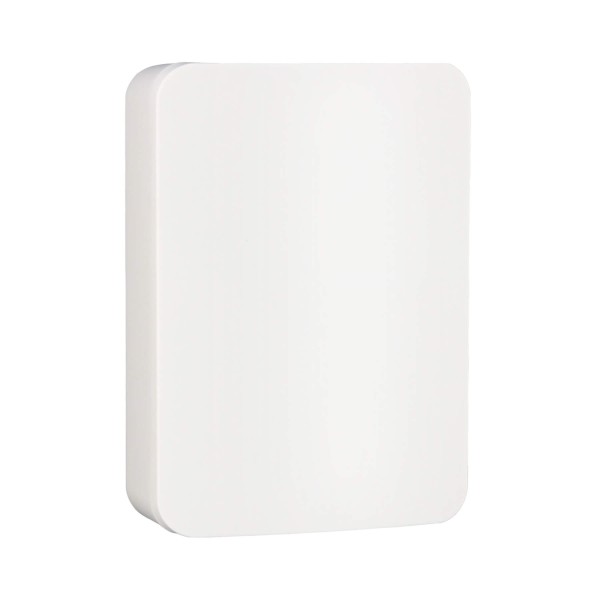

2GIG 345S Wireless Hardwire Takeover Module - 2GIG-TAKE100-345

Details

2GIG 345S Wireless Hardwire Takeover Module - 2GIG-TAKE100-345

The 2GIG 345S Wireless Hardwire Takeover Module allows you to modernize your security setup by converting hardwired sensors into wireless signals. Each module supports up to eight wired zones, with the ability to expand further using additional modules. It operates on the 345 MHz frequency, with the option to use encrypted or non-encrypted transmission modes for flexible integration. Designed to draw power and backup from existing alarm panels, it includes an onboard charging circuit and LED status indicator. This compact and efficient solution provides a practical bridge between legacy systems and the full 2GIG wireless ecosystem.

Features

• Converts hardwired loops into up to 8 wireless zones per module (expandable with additional modules)
• Supports both encrypted and non-encrypted operation via onboard switch
• 2GIG 345 MHz compatible for seamless integration
• Can be powered by and use backup battery of an existing alarm panel
• Includes charging circuit for backup battery with status LED
• Aux output supports up to 500 mA for wired motion and glass break sensors
• ETL listed for reliability and compliance
• Part of the complete 2GIG security ecosystem including GC Touch and 2GIG EDGE panels

Specifications

• Frequency: 345 MHz
• Supported Zones: 8 wired zones; 1 self-monitor zone
• Input Voltage: 9-16VDC or 16.5-20VAC
• Aux Output: 10-16VDC, 500 mA
• Backup Battery: Up to 12VDC, 7AH
• Connector: AC barrel connector, DC power barrel plug (Type A: 5.5 mm OD, 2.1 mm ID)
• Dimensions (L x W x H): 3.53 x 2.56 x 1.22 in (89.7 x 65.0 x 31.0 mm)
• Weight: 3.21 oz (90.9 g)
• Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
• Relative Humidity: 5% to 95%, non-condensing
• Certifications: ETL, FCC, Industry Canada
