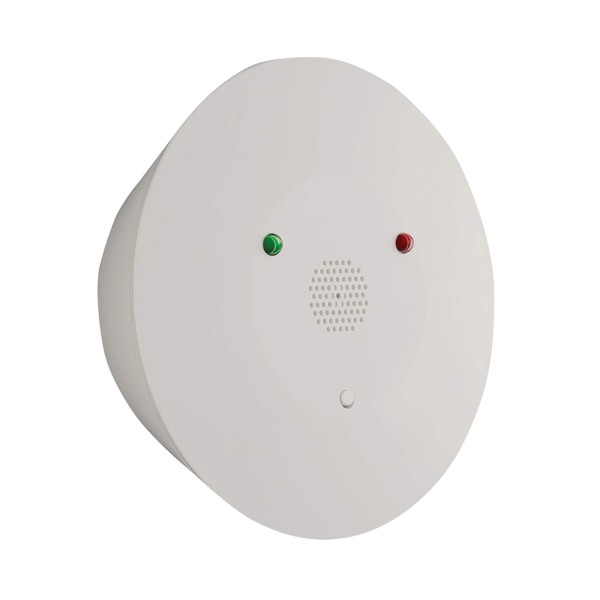

2GIG 345S Wireless Glass Break Detector - 2GIG-GB100-345

Details

2GIG 345S Wireless Glass Break Detector - 2GIG-GB100-345

The 2GIG 345S Wireless Glass Break Detector enhances security by recognizing the sound patterns of breaking glass, including plate, laminated, tempered, and coated types. Using dual-stage detection for both thud and crash sounds, it provides accurate alerts while minimizing false alarms. Its coverage extends up to 15 feet and can be mounted on ceilings or walls with adjustable sensitivity for different environments. Operating at 345 MHz, it integrates seamlessly with 2GIG panels while supporting both encrypted and non-encrypted modes. With tamper protection, full supervision, and a projected five-year battery life, this detector is an effective safeguard against intrusion through glass windows and doors.

Features

• Dual-stage detection using both thud (impact) and crash (shatter) sounds
• Minimizes false alarms by distinguishing real glass break events
• Detects shattering glass types including plate, tempered, laminated, and coated
• Covers up to a 15-foot radius with 360 Degree ceiling mount or 180 Degree wall mount
• User-adjustable sensitivity settings for noisy environments
• Default non-encrypted operation with option to enable encryption via onboard switch
• Battery life of up to 5 years
• Tamper-protected and fully supervised design

Specifications

• Transmitter Frequency: 345 MHz
• Compatibility: 2GIG Panels
• Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
• Supervisory Interval: 70 minutes
• Sensor Type: Single Microphone, Dual Stage Thud and Crash
• Maximum Horizontal Sensing Angle: 360 Degree ceiling mount; 180 Degree wall mount
• Detection Range: 15 ft radius
• Dimensions (D x H): 4.57 x 1.57 in (11.6 x 3.99 cm)
• Weight: 0.35 lbs (158 g)
• Housing Material: ABS Plastic
• Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
• Operating Relative Humidity: 5% to 90%, non-condensing
• Batteries: Two CR123A 3V Lithium (included)
• Projected Battery Life: 5 years
• Certifications: ETL, FCC, IC
