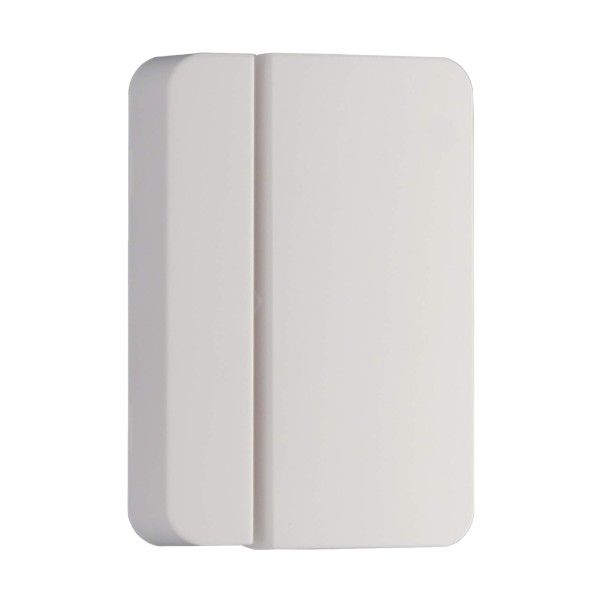

2GIG 345S Wireless Door/Window Contact Sensor - 2GIG-DW100-345

Details

2GIG 345S Wireless Door/Window Contact Sensor - 2GIG-DW100-345

The 2GIG 345S Wireless Door/Window Contact Sensor adds versatile security to your property by monitoring a wide range of entry points. Operating at 345 MHz, it integrates with 2GIG panels and can also support external Normally Open or Normally Closed devices. Its design includes multiple code outputs such as tamper and supervisory alerts, delivering complete system awareness. With an eight-year battery life and compatibility across the 2GIG security ecosystem, it's built for dependable performance. This compact sensor is designed for straightforward use on doors, windows, or other access points that require monitoring.

Features

• Reliable and versatile design for doors, windows, and other openings
• Operates at 345 MHz with compatibility for 2GIG security panels
• On/Off switchable encryption via internal switch
• Supports external Normally Open (NO) or Normally Closed (NC) dry contact devices
• Battery life of up to 8 years
• Includes spacer for seamless installation on more door and window types
• Rounded outer with square interior for accurate installation
• Modern, sleek design for residential and commercial use

Specifications

• Transmitter Frequency: 345 MHz
• Compatibility: 2GIG Security Panels (GC Touch, 2GIG EDGE, and earlier panels)
• Code Outputs: Alarm, Alarm Restore, Supervisory, Low Battery, External Alarm, External Restore, Tamper, Tamper Restore
• Supervisory Interval: 70 minutes
• External Input: Accepts NC or NO dry contact devices
• Magnet Type: Rare Earth
• Magnet Dimensions (L x W x H): 2.42" x 0.58" x 2.42" (6.1 x 1.47 x 6.1 cm)
• Sensor Dimensions (L x W x H): 2.42" x 1.07" x 0.58" (6.1 x 2.7 x 1.47 cm)
• Weight: 1.24 oz (35 g)
• Housing Material: ABS Plastic
• Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
• Relative Humidity: 5% to 90%, non-condensing
• Battery: One CR2450 Lithium (installed)
• Certifications: ETL, FCC, Industry Canada
