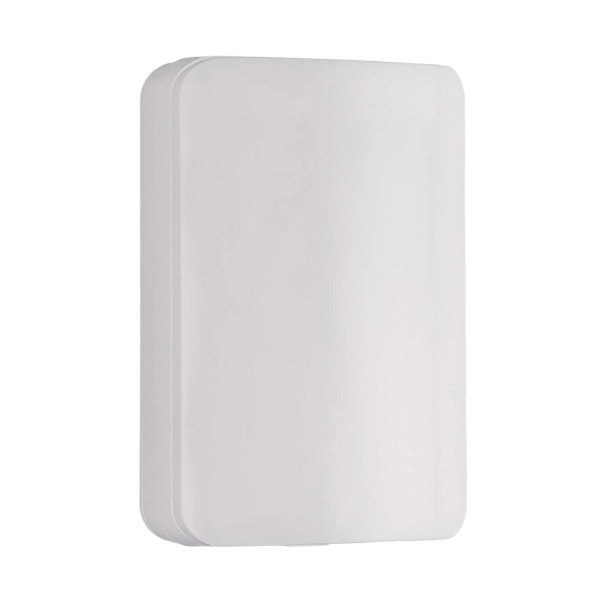

2GIG 345S Passive Infrared Motion Detector - 2GIG-PIR100-345

Details

2GIG 345S Passive Infrared Motion Detector - 2GIG-PIR100-345

The 2GIG 345S Passive Infrared Motion Detector offers reliable motion detection with wide coverage, ensuring strong protection for larger areas. It is pet immune up to 85 pounds, making it ideal for households where animals roam freely. The sensor is installer-adjustable with a high sensitivity mode, giving flexibility to fit specific needs. Operating at 345 MHz, it works seamlessly with 2GIG panels including GC Touch and EDGE, while maintaining low failure rates across millions of devices. With a projected battery life of up to seven years, it provides consistent, long-lasting performance in both residential and commercial spaces.

Features

• Wide-angle motion protection with impressive 30 ft x 50 ft coverage
• Pet immunity for animals up to 85 lbs, minimizing false alarms
• Ships in non-encrypted mode by default; encryption can be activated via onboard switch
• Installer-adjustable sensitivity with high-sensitivity mode as default
• Battery life of up to 7 years
• Sleek, modern design integrates seamlessly into residential or commercial environments
• Proven 2GIG reliability with industry-leading low failure rate
• Compatible with GC Touch, 2GIG EDGE, and earlier 2GIG panels

Specifications

• Transmitter Frequency: 345 MHz
• Compatibility: 2GIG Panels
• Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
• Supervisory Interval: 70 minutes
• Sensor Type: Quad Element
• Pet Immunity: Up to 85 lbs (38 kg)
• Suggested Mounting Height: 7.5 ft (2.3 m)
• Detection Range: 30 ft (9.1 m) x 50 ft (15.2 m)
• Horizontal Sensing Angle: 100 Degree maximum spread
• Dimensions (L x W x H): 3.53 x 2.35 x 1.63 in (8.97 x 5.97 x 4.14 cm)
• Weight: 3.5 oz (98 g)
• Housing Material: ABS Plastic
• Operating Temperature: 32 to 120 degrees F (0 to 49 degrees C)
• Relative Humidity: 5% to 90%, non-condensing
• Battery: One CR123A 3V Lithium (included)
• Projected Battery Life: Up to 7 years
• Certifications: ETL, FCC, IC
