Details
Nice Apollo TITAN12L Swing Gate Opener 936 Board
**Please Note: The TITAN12L Swing Gate Opener With 936 Control Board Has Been Discontinued and Replaced By The Nice Apollo Mercury 310 Swing Gate Opener.**
The Nice Apollo TITAN12L-936 is a new version of the new swing gate opener TITAN12L from Nice Apollo. This unit includes the 936 control board.
Use this 12V DC battery powered linear actuator for swing gates up to 1000 and 8 ft long or 600 lbs and 20 ft long (per gate leaf). Recommended for residential, farm and ranch applications, the Titan features plug and play simplicty with the 936 control board.
The Titan +12VDC Swing Gate Operator delivers the next generation of easily installed, configured, and maintained swing gate operators from Nice Apollo. This state of the art gate operator incorporates lockable manual release, easily accessible limit switch settings, and simple in-the-field maintenance and repair. With advanced technology, the Titan TITAN12L will provide solid performance for hundreds of thousands of open and close cycles.
Includes:
1 FREE Apollo Receiver | Free Photo Eye | Free Apollo ABF/A Long Range Adjustable Aerial Antenna | FREE SHIPPING
This Gate Opener Includes:
- Titan Actuator, 12V With Encoder
- 936 Control Board
- 12 ft Harness
- Through Beam Photoeye - UL325-2018
- OXI/A Receiver
Specifications:
- Model: TITAN12L
- Operation: 12V DC
- 90° Opening Speed: 14 Seconds
- Cycles Per Hour: Varies Based On Charging Capacity
- Working Temperature: -4°F - +122°F
- Actuator Dimensions: 42" Retracted - 71" Extended
Features:
- Easy to install
- Modular design which allows for in-the-field replacement of the 12 VDC drive motor and worm gear train, the limit assembly and screw driven piston arm
- Key lockable manual release for access in power outages and troubleshooting situations
- Retrofit design for direct swap out with 816 and 416 actuator arms - The Titan will bolt directly to the existing gate hardware!
Warranty:
All Nice Gate Openers have a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited time warranty is offered for registered gate openers. Gate openers will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

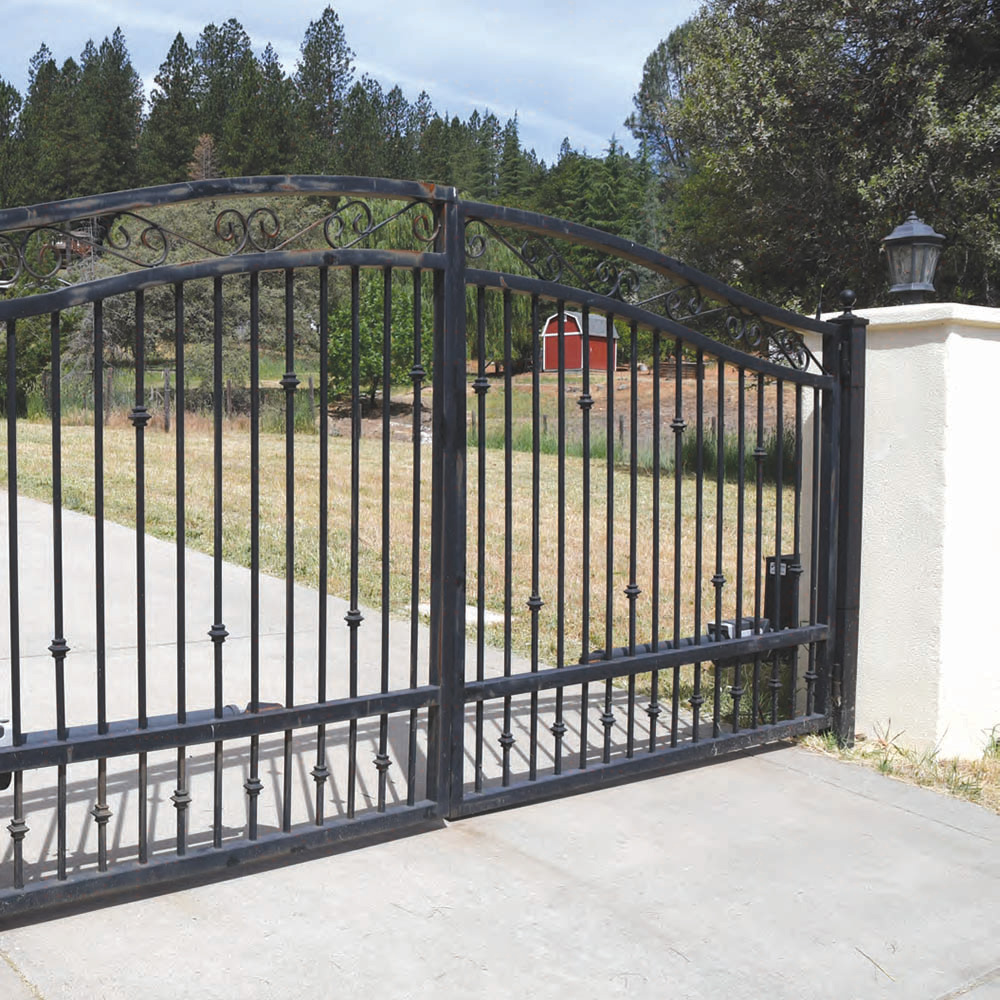

Installation Gallery
Video Gallery
Additional Information
| SKU | TITAN12L-936 |
|---|---|
| Board Type | 936 |
| Operator | Apollo Titan12L |
| Arm Type | Titan |
| Usage Class | I, II |
| Single or Dual Operator | Single |
| Maximum Gate Weight | 1000 lbs. |
| Gate Opening | 8 ft. - 20 ft.* |
| Manufacturer | Nice Apollo Gate Operators |
| Condition | New |
| Warranty | Two Year Manufacturer's Limited Warranty |
