Nice Apollo TITAN12L Dual Swing Gate Opener 936 Board

Nice Apollo TITAN12L Dual Swing Gate Opener 936 Board

Use this operator for swing gates up to 1000lbs and 8 ft or 600 lbs and 20 ft long (per gate leaf).


Please Note: The TITAN12L Dual Swing Gate Opener With 936 Control Board Has Been Discontinued and Replaced By The Nice Apollo Mercury 310 Swing Gate Opener.

Call (800) 878-7829

Details

**Please Note: The TITAN12L Dual Swing Gate Opener With 936 Control Board Has Been Discontinued and Replaced By The Nice Apollo Mercury 310 Swing Gate Opener.**


The Nice Apollo TITAN12LDUAL-936 is a new version of the swing gate opener TITAN12L from Nice Apollo. This unit includes the 936 control board.

Use this 12 Volt DC battery powered linear actuator for swing gates up to 600 lbs and 20 ft long Per Gate Leaf or 1000 lbs and 8 ft long Per Gate Leaf . Recommended for commercial, residential, farm and ranch applications, the Titan features plug and play simplicty with the 936 control board.

The Titan +12VDC Swing Gate Operator delivers the next generation of easily installed, configured, and maintained swing gate operators from Nice Apollo. This state of the art gate operator incorporates a lockable manual release, easily accessible limit switch settings, and simple in-the-field maintenance and repair. With advanced state of the art technology, the Titan TITAN12LDUAL will provide solid performance for hundreds of thousands of open and close cycles.

Includes:
1 FREE Apollo Receiver | Free Photo Eye | 1 Apollo ABF/A Long Range Adjustable Aerial Antenna | FREE SHIPPING

This Gate Opener Includes:

  • 1 x Nice Apollo Titan Primary Actuator, 12V With Encoder (12 ft. Harness)
  • 1 x Nice Apollo Titan Secondary Actuator, 12V With Encoder (42 ft. Harness)
  • 936 Control Board
  • Through Beam Photoeye - UL325-2018
  • OXI/A Receiver
  • 1 x ABF/A Long Range Adjustable Aerial Antenna
  • 2 x Mounting Kits

Specifications:

  • Model: TITAN12L
  • Operation: 12 VDC
  • 90° Opening Speed: 14 Seconds
  • Cycles Per Hour: Varies Based On Charging Capacity
  • Working Temperature: -4°F - +122°F
  • Actuator Dimensions: 42" Retracted - 71" Extended

Features:

  • Easy to install
  • Modular design which allows for in-the-field replacement of the 12 VDC drive motor and worm gear train, the limit assembly and screw driven piston arm
  • Key lockable manual release for access in power outages and troubleshooting situations
  • Retrofit design for direct swap out with 816 and 416 actuator arms - The Titan will bolt directly to the existing gate hardware!

Warranty:

All Nice Gate Openers have a two-year limited warranty against manufacturing defects. The two-year warranty will start from the time of shipment from Hysecurity. A three-year limited time warranty is offered for registered gate openers. Gate openers will be registered through DF Supply Inc. at the time of purchase and the three-year limited time warranty will be effective after the date of installation.

*Please Note: (Meets UL325 2018) At Least One Entrapment Device will be needed for board to function and meet UL325 2018 (MOFB, IRB-MON, IRB-RET)


Installation Gallery

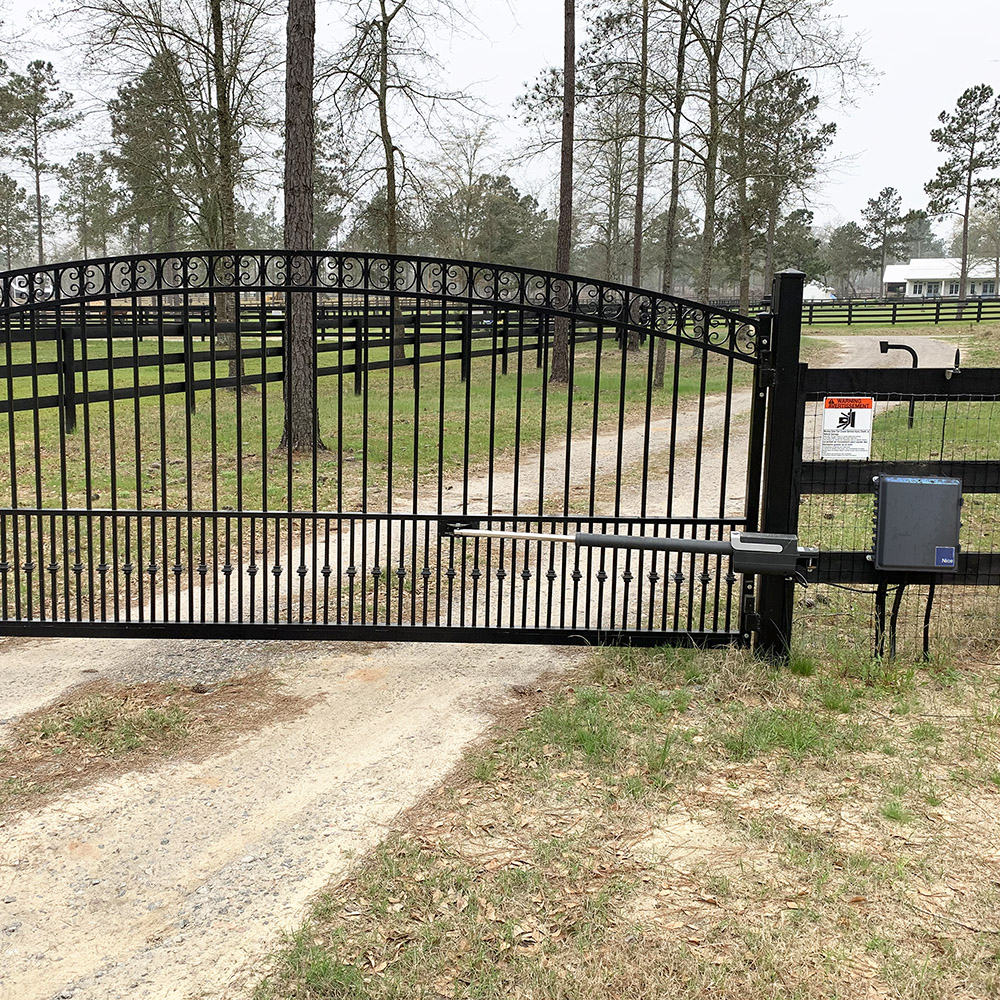

Nice Titan12L Swing Gate Operator Installation
Nice Titan12L Swing Gate Operator Installation
Nice Titan12L Swing Gate Operator Installation
Nice Titan12L Swing Gate Operator Installation
Nice Titan12L Swing Gate Operator Installation
Nice Titan12L Swing Gate Operator Installation


Additional Information

SKU TITAN12LDUAL-936
Board Type 936
Operator Apollo Titan12L
Arm Type Titan
Usage Class I, II
Single or Dual Operator Dual
Maximum Gate Weight 1000 lbs.
Gate Opening 8 ft. - 20 ft. (dependent on gate weight)
Manufacturer Nice Apollo Gate Operators
Condition New
Warranty Two Year Manufacturer's Limited Warranty
